Vertical internal light
Digital controller

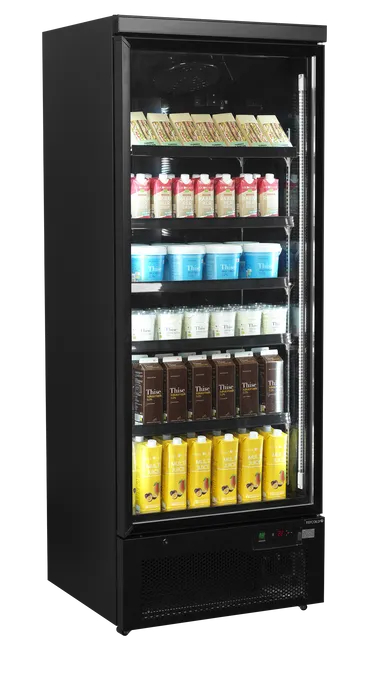

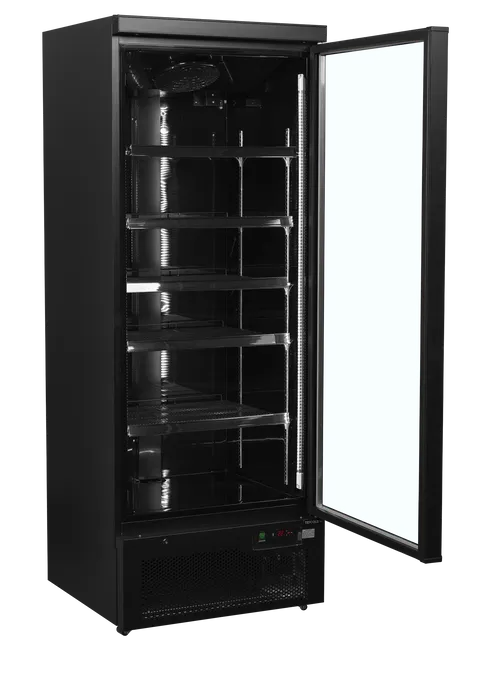

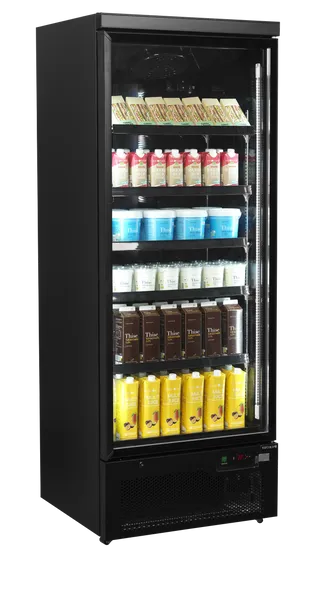

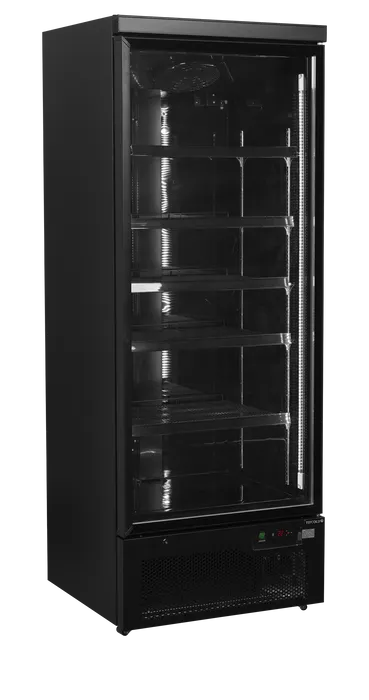

Glass Door Merchandiser
Atom Maxi C1DBB
Product.ItemNumber:54346
Product.Brand:TEFCOLD
- Great product presentation
- Black interior and exterior
- Low energy consumption
- Self-closing heated glass door
- Double glazed tempered glass
- Internal vertical LED light
- Ventilated cooling
- Adjustable shelves
- Stainless steel base with mirror effect
- Digital controller and temperature display
- Freezer Option Available
- Checkout.Shipping.NextDayDeliveryLabel
- Unpack & Position£ 37.00
- Remove & Dispose£ 72.00
ProductDetail.Shipping.Header
ProductDetail.TechnicalSpecificationHeader
Measures and Content
- Gross / Net Weight141.5 / 130 kg
- Bottles 330 ml350 pcs
- Bottles 500 ml PET315 pcs
- Cans 330 ml630 pcs
- Cans 500 ml378 pcs
- Gross / Net Volume614 / 459 l
- Total Display Area0.98 m²
- Temperature Range-1 to +10 °C
- Climate Class3
Design and Material
- Exterior FinishBlack RAL9005
- Interior FinishBlack
- Door Number & Type1 hinged glass door
- Door ReversibleNo
- Shelves Number & Type5 adjustable
- Shelf ColorBlack
- Shelf Dimensions637 x 480 mm
- Max load on Shelves135 kg/m²
- Castors4 castors
- Lock
- Interior LightLED
Cooling and Functions
- Type of ControllerElectronic
- Type of CoolingVentilated
- Type of DefrostAutomatic / Off Cycle
- RefrigerantR290
- Refrigerant Charge85 g
- Thermometer
Power and Consumption
- Energy ClassB
- EPREL No1786679
- Max Ambient+25°C, 60% RH
- Energy Consumption2.5 kWh/24h
- Annual Energy Consumption913 kWh/year
- EEI15.4 %
- Power13 Amp
- Input Power323 W
- Voltage / Frequency220-240/50 V/Hz
- Noise Level58 dB(A)
Dimensions
- 40ft Container Load 45 pcs
- GTIN / EAN5708181739546
- Product Group - Delivery servicesGroup 2
- External Dimension (WxDxH)750 x 710 x 2003 mm
- Internal Dimension (WxDxH)660 x 595 x 1568 mm
- Packed Dimension (WxDxH)775 x 770 x 2090 mm
ProductDetail.DownloadsHeader
ProductDetail.LongDescriptionHeader
ProductDetail.SparePartsHeader
- 01Product.ItemNumber 52019Top Panel Black RAL9005
- 02Product.ItemNumber 69316Door corner guards (Black / Left)
- 03Product.ItemNumber 72156Door Set B, w Lock Hole
- 04Product.ItemNumber 69315Door corner guards (Black / Right)
- 05Product.ItemNumber 67623Front Grill B /w Lock Complete Kit
- 06Product.ItemNumber 67622Lock and Keys
- 07Product.ItemNumber 52039Bottom Hinge Right
- 08Product.ItemNumber 69321Controller cover
- 09
Product.ItemNumber 47667Condenser - 10Product.ItemNumber 47565Digital Thermostat Carel
- 11Product.ItemNumber 47582Drip Tray
- 13Product.ItemNumber 72190Condenser fan motor
- 14Product.ItemNumber 52041Light Switch Green
- 15Product.ItemNumber 52040Compressor
- 16Product.ItemNumber 72189Supporter for Dry Filter
- 17Product.ItemNumber 47583Filter Drier
- 18Product.ItemNumber 47642Castor
- 19Product.ItemNumber 47638LED Driver
- 21Product.ItemNumber 54967Evaporator Supporter Black
- 22Product.ItemNumber 47629Evaporator Fan Motor
- 23Product.ItemNumber 46053Fan Blade
- 24Product.ItemNumber 49883Evaporator
- 25Product.ItemNumber 72188Fan Cover
- 26Product.ItemNumber 71726Front Panel Support
- 27Product.ItemNumber 54968Shelf 12mm Black
- 28Product.ItemNumber 47647K-Clip
- 29Product.ItemNumber 68886Price Holder 42mm Black
- 30Product.ItemNumber 46055LED RIGHT
- 31Product.ItemNumber 46056LED LEFT
- 32Product.ItemNumber 52036Top Hinge Right
- 33Product.ItemNumber 72184Door Sealer Black
- 99Product.ItemNumber 46052Fan Motor
- 99Product.ItemNumber 52002Door Seal
- 99Product.ItemNumber 52010Glass Door B, w/o Lock Hole
- 99Product.ItemNumber 52031Front Grill Black RAL9005
- 99Product.ItemNumber 54969Price Holder 35,2mm Black
- 99Product.ItemNumber 67621Locking Latch
