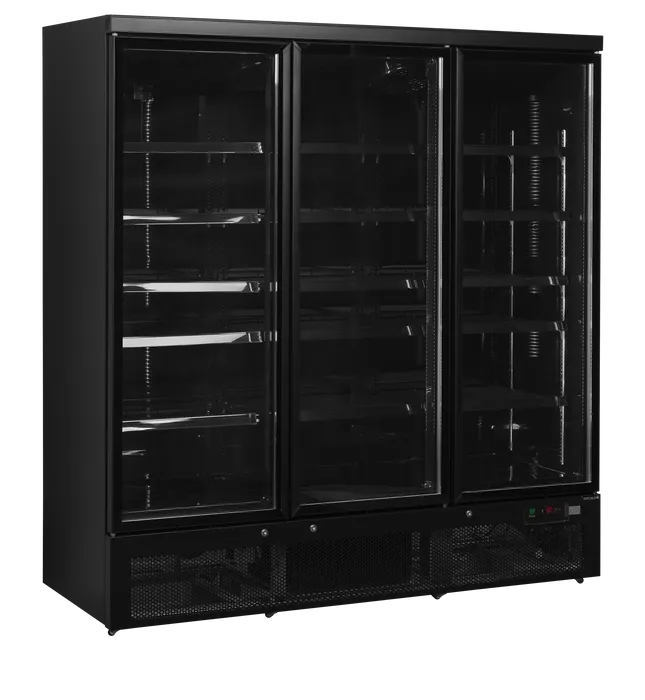

Glass Door Merchandiser

Atom Maxi C3DBB

Product.ItemNumber:54348

Product.Brand:TEFCOLD

  • Great product presentation
  • Black interior and exterior
  • Low energy consumption
  • Self-closing glass doors
  • Double glazed tempered glass
  • Internal vertical LED light
  • Ventilated cooling
  • Adjustable shelves (split level)
  • Stainless steel base with mirror effect
  • Digital controller and temperature display
  • Freezer Option Available
Product.EnergyArrow
Product.Downloads.ProductSheet
  • Checkout.Shipping.NextDayDeliveryLabel
  • Unpack & Position
    £ 50.00
  • Remove & Dispose
    £ 162.00
ProductDetail.Shipping.Header

ProductDetail.TechnicalSpecificationHeader

Measures and Content

  • Gross / Net Weight
    235 / 207.5 kg
  • Bottles 330 ml
    980 pcs
  • Bottles 500 ml PET
    875 pcs
  • Cans 330 ml
    2100 pcs
  • Cans 500 ml
    1050 pcs
  • Gross / Net Volume
    1664 / 1062 l
  • Total Display Area
    2.38 m²
  • Temperature Range
    -1 to +10 °C
  • Climate Class
    3

Design and Material

  • Exterior Finish
    Black RAL9005
  • Interior Finish
    Black
  • Door Number & Type
    3 hinged glass doors
  • Door Reversible
    No
  • Shelves Number & Type
    15 adjustable
  • Shelf Color
    Black
  • Shelf Dimensions
    566 x 480 mm ; 624 x 480 mm
  • Max load on Shelves
    136 kg/m²
  • Castors
    6 castors
  • Lock
  • Interior Light
    LED

Cooling and Functions

  • Type of Controller
    Electronic
  • Type of Cooling
    Ventilated
  • Type of Defrost
    Automatic / Off Cycle
  • Refrigerant
    R290
  • Refrigerant Charge
    130 g
  • Thermometer

Power and Consumption

  • Energy Class
    B
  • EPREL No
    1556596
  • Max Ambient
    +25°C, 60% RH
  • Energy Consumption
    5.41 kWh/24h
  • Annual Energy Consumption
    1975 kWh/year
  • EEI
    19.5 %
  • Power
    2 x 13 Amp
  • Input Power
    700 W
  • Voltage / Frequency
    220-240/50 V/Hz
  • Noise Level
    61 dB(A)

Dimensions

  • 40ft Container Load
    18 pcs
  • GTIN / EAN
    5708181739560
  • Product Group - Delivery services
    Group 4
  • External Dimension (WxDxH)
    1880 x 710 x 2003 mm
  • Internal Dimension (WxDxH)
    1790 x 595 x 1568 mm
  • Packed Dimension (WxDxH)
    1920 x 750 x 2090 mm

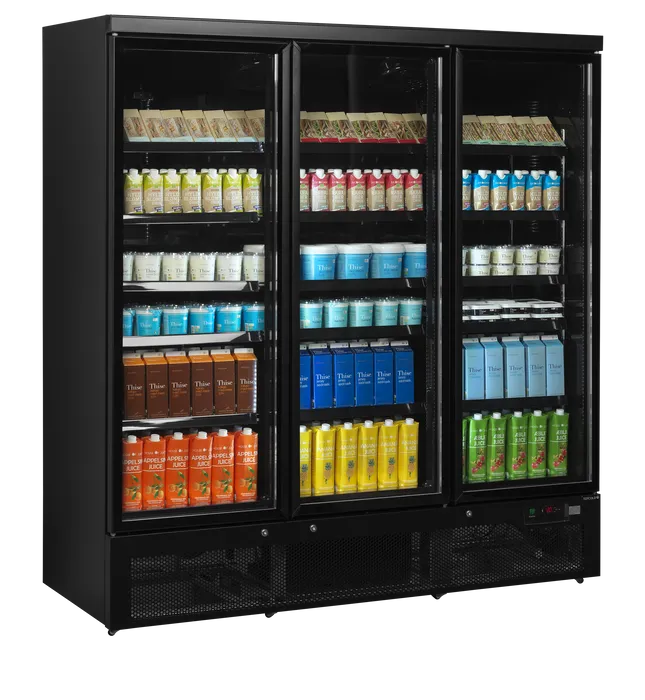

54348 Atom Maxi C3DBB content image
